导出到 Cypher 脚本

导出到 Cypher 过程将数据导出为 Cypher 语句，这些语句可用于将数据导入到另一个 Neo4j 实例。

导出节点时，如果节点标签不包含唯一约束，则导出器会向这些节点添加 UNIQUE IMPORT LABEL 标签和 UNIQUE IMPORT ID 属性，以确保在新的数据库上执行导出脚本时节点的唯一性。导出脚本的最后一步会移除 UNIQUE IMPORT LABEL 标签和 UNIQUE IMPORT ID 属性，因此一旦脚本执行完成，它们将不会存在于新数据库中。

如果节点标签确实有唯一约束，则将使用定义唯一约束的属性来确保唯一性。

可用过程

下表描述了可用过程

限定名称 类型

apoc.export.cypher.all
apoc.export.cypher.all(file STRING, config MAP<STRING, ANY>) - 将完整数据库（包括索引）导出为 Cypher 语句到指定文件（默认：Cypher Shell）。

过程

apoc.export.cypher.data
apoc.export.cypher.data(nodes LIST<NODE>, rels LIST<RELATIONSHIP>, file STRING, config MAP<STRING, ANY>) - 将给定的 NODE 和 RELATIONSHIP 值（包括索引）导出为 Cypher 语句到指定文件（默认：Cypher Shell）。

过程

apoc.export.cypher.graph
apoc.export.cypher.graph(graph MAP<STRING, ANY>, file STRING, config MAP<STRING, ANY>) - 将给定图（包括索引）导出为 Cypher 语句到指定文件（默认：Cypher Shell）。

过程

apoc.export.cypher.query
apoc.export.cypher.query(statement STRING, file STRING, config MAP<STRING, ANY>) - 将给定 Cypher 查询中的 NODE 和 RELATIONSHIP 值（包括索引）导出为 Cypher 语句到指定文件（默认：Cypher Shell）。

过程

apoc.export.cypher.schema
apoc.export.cypher.schema(file STRING, config MAP<STRING, ANY>) - 将所有 schema 索引和约束导出为 Cypher 语句。

过程
导出的标签按字母顺序排列。labels() 函数的输出未排序，请与 apoc.coll.sort() 结合使用。

配置参数

这些过程支持以下配置参数

表 1. 配置参数
名称 类型 默认值 描述

format

字符串

cypher-shell

导出格式。支持以下值

  • cypher-shell - 用于 Cypher Shell 导入

  • neo4j-shell - 用于 Neo4j Shell 导入

  • plain - 导出纯 Cypher，不带 begin、commit 或 await 命令。用于 Neo4j Browser 导入

cypherFormat

字符串

create

Cypher 更新操作类型。支持以下值

  • create - 仅使用 CREATE 子句

  • updateAll - 使用 MERGE 而非 CREATE

  • addStructure - 对节点使用 MATCH，对关系使用 MERGE

  • updateStructure - 对节点和关系使用 MERGE 和 MATCH

useOptimizations

映射

{type: "UNWIND_BATCH", unwindBatchSize: 20}

用于 Cypher 语句生成的优化。type 支持以下值

  • NONE - 使用 CREATE 语句导出文件

  • UNWIND_BATCH - 通过使用 UNWIND 方法对实体进行批量处理来导出文件，如 Michael Hunger 关于快速批量写入的文章所述。

  • UNWIND_BATCH_PARAMS - 类似于 UNWIND_BATCH，但在适当情况下也使用参数

awaitForIndexes

整数

300

当使用 format: "cypher-shell" 时，db.awaitIndexes 的超时时间

saveIndexNames

布尔值

false

导出时保存名称索引

saveConstraintNames

布尔值

false

导出时保存名称约束

multipleRelationshipsWithType

布尔值

false

如果两个 NODE 值之间存在多个相同类型的关系，则添加 UNIQUE IMPORT ID REL 属性，以便在使用 MERGE 时区分它们。

导出到文件

默认情况下，导出到文件系统是禁用的。我们可以通过在 apoc.conf 中设置以下属性来启用它

apoc.conf
apoc.export.file.enabled=true

有关访问 apoc.conf 的更多信息，请参阅配置选项章节。

如果我们尝试在未首先设置此属性的情况下使用任何导出过程，将收到以下错误消息

Failed to invoke procedure: Caused by: java.lang.RuntimeException: Export to files not enabled, please set apoc.export.file.enabled=true in your apoc.conf. Otherwise, if you are running in a cloud environment without filesystem access, use the {stream:true} config and null as a 'file' parameter to stream the export back to your client.

导出文件会写入 import 目录，该目录由 server.directories.import 属性定义。这意味着我们提供的任何文件路径都是相对于此目录的。如果我们尝试写入绝对路径，例如 /tmp/filename，将收到类似于以下内容的错误消息

Failed to invoke procedure: Caused by: java.io.FileNotFoundException: /path/to/neo4j/import/tmp/fileName (No such file or directory)

我们可以通过在 apoc.conf 中设置以下属性来启用向文件系统上任何位置的写入

apoc.conf
apoc.import.file.use_neo4j_config=false

Neo4j 现在将能够写入文件系统上的任何位置，因此在设置此属性之前，请确保这是您的意图。

导出流

如果不想导出到文件，可以通过提供 null 文件名来流式传输结果。

默认情况下，所有 Cypher 语句将以单行形式返回到 cypherStatements 列中。

以下将整个数据库作为单行导出
CALL apoc.export.cypher.all(null);

如果要导出大型数据库，可以通过提供 streamStatements:true 配置并配置 batchSize 来将这些语句分批处理到多行中。

以下根据批次大小将整个数据库导出到多行中
CALL apoc.export.cypher.all(null, {
    streamStatements: true,
    batchSize: 100
});

示例

本节包含使用导出到 Cypher 过程的示例。这些示例基于电影数据集，可以通过运行以下 Cypher 查询来导入

CREATE (TheMatrix:Movie {title:'The Matrix', released:1999, tagline:'Welcome to the Real World'})
CREATE (Keanu:Person {name:'Keanu Reeves', born:1964})
CREATE (Carrie:Person {name:'Carrie-Anne Moss', born:1967})
CREATE (Laurence:Person {name:'Laurence Fishburne', born:1961})
CREATE (Hugo:Person {name:'Hugo Weaving', born:1960})
CREATE (LillyW:Person {name:'Lilly Wachowski', born:1967})
CREATE (LanaW:Person {name:'Lana Wachowski', born:1965})
CREATE (JoelS:Person {name:'Joel Silver', born:1952})
CREATE
(Keanu)-[:ACTED_IN {roles:['Neo']}]->(TheMatrix),
(Carrie)-[:ACTED_IN {roles:['Trinity']}]->(TheMatrix),
(Laurence)-[:ACTED_IN {roles:['Morpheus']}]->(TheMatrix),
(Hugo)-[:ACTED_IN {roles:['Agent Smith']}]->(TheMatrix),
(LillyW)-[:DIRECTED]->(TheMatrix),
(LanaW)-[:DIRECTED]->(TheMatrix),
(JoelS)-[:PRODUCED]->(TheMatrix);

下面的 Neo4j Browser 可视化显示了导入的图

导出为 Cypher Shell 格式

默认情况下，导出到 Cypher 过程生成的 Cypher 语句采用 Cypher Shell 格式。

以下查询使用默认的 UNWIND_BATCH 优化，将整个数据库导出为默认 cypher-shell 格式的 all.cypher 文件
// default config populated for illustration
CALL apoc.export.cypher.all("all.cypher", {
    format: "cypher-shell",
    useOptimizations: {type: "UNWIND_BATCH", unwindBatchSize: 20}
})
YIELD file, batches, source, format, nodes, relationships, properties, time, rows, batchSize
RETURN file, batches, source, format, nodes, relationships, properties, time, rows, batchSize;
表 2. 结果
file batches source format nodes relationships properties time rows batchSize

"all.cypher"

1

"database: nodes(8), rels(7)"

"cypher"

8

7

21

10

15

20000

以下显示了 all.cypher 的内容，并增加了额外的行以提高可读性

all.cypher
:begin
CREATE CONSTRAINT uniqueConstraint FOR (node:`UNIQUE IMPORT LABEL`) REQUIRE (node.`UNIQUE IMPORT ID`) IS UNIQUE;
:commit

:begin
UNWIND [{_id:0, properties:{tagline:"Welcome to the Real World", title:"The Matrix", released:1999}}] AS row
CREATE (n:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row._id}) SET n += row.properties SET n:Movie;

UNWIND [{_id:1, properties:{born:1964, name:"Keanu Reeves"}}, {_id:2, properties:{born:1967, name:"Carrie-Anne Moss"}}, {_id:3, properties:{born:1961, name:"Laurence Fishburne"}}, {_id:4, properties:{born:1960, name:"Hugo Weaving"}}, {_id:5, properties:{born:1967, name:"Lilly Wachowski"}}, {_id:6, properties:{born:1965, name:"Lana Wachowski"}}, {_id:7, properties:{born:1952, name:"Joel Silver"}}] AS row
CREATE (n:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row._id}) SET n += row.properties SET n:Person;
:commit

:begin
UNWIND [{start: {_id:1}, end: {_id:0}, properties:{roles:["Neo"]}}, {start: {_id:2}, end: {_id:0}, properties:{roles:["Trinity"]}}, {start: {_id:3}, end: {_id:0}, properties:{roles:["Morpheus"]}}, {start: {_id:4}, end: {_id:0}, properties:{roles:["Agent Smith"]}}] AS row
MATCH (start:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row.start._id})
MATCH (end:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row.end._id})
CREATE (start)-[r:ACTED_IN]->(end) SET r += row.properties;

UNWIND [{start: {_id:7}, end: {_id:0}, properties:{}}] AS row
MATCH (start:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row.start._id})
MATCH (end:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row.end._id})
CREATE (start)-[r:PRODUCED]->(end) SET r += row.properties;

UNWIND [{start: {_id:5}, end: {_id:0}, properties:{}}, {start: {_id:6}, end: {_id:0}, properties:{}}] AS row
MATCH (start:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row.start._id})
MATCH (end:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row.end._id})
CREATE (start)-[r:DIRECTED]->(end) SET r += row.properties;
:commit

:begin
MATCH (n:`UNIQUE IMPORT LABEL`)  WITH n LIMIT 20000 REMOVE n:`UNIQUE IMPORT LABEL` REMOVE n.`UNIQUE IMPORT ID`;
:commit

:begin
DROP CONSTRAINT uniqueConstraint;
:commit

此 Cypher 脚本执行 5 个事务，每个事务都由 :begin 和 :commit 命令包围。这些事务执行以下操作

  1. 在 UNIQUE IMPORT LABEL 标签和 UNIQUE IMPORT ID 属性上创建唯一约束

  2. 导入 Person 和 Movie 节点

  3. 在这些节点之间创建 ACTED_IN、PRODUCED 和 DIRECTED 关系

  4. 从节点中移除 UNIQUE IMPORT LABEL 标签和 UNIQUE IMPORT ID 属性

  5. 删除 UNIQUE IMPORT LABEL 标签和 UNIQUE IMPORT ID 属性上的唯一约束

此脚本可以使用 Cypher Shell 命令行工具执行。

例如，我们可以通过运行以下命令，将 all.cypher 的内容导入到 Neo4j Aura 数据库中

cat all.cypher | ./bin/cypher-shell -a <bolt-url> -u neo4j -p <password> --format verbose

请不要忘记将 <bolt-url> 和 <password> 替换为相应的凭据。

如果对空数据库运行此命令，将看到以下输出

0 rows available after 70 ms, consumed after another 0 ms
Added 1 constraints
0 rows available after 16 ms, consumed after another 0 ms
Added 2 nodes, Set 8 properties, Added 4 labels
0 rows available after 40 ms, consumed after another 0 ms
Added 14 nodes, Set 42 properties, Added 28 labels
0 rows available after 51 ms, consumed after another 0 ms
Created 8 relationships, Set 8 properties
0 rows available after 38 ms, consumed after another 0 ms
Created 2 relationships
0 rows available after 38 ms, consumed after another 0 ms
Created 4 relationships
0 rows available after 20 ms, consumed after another 0 ms
Set 16 properties, Removed 16 labels
0 rows available after 3 ms, consumed after another 0 ms
Removed 1 constraints
故障排除

如果您正在尝试导入失败，可以添加 --debug 命令行参数，以查看最后执行了哪个语句并导致了失败。

另请检查您的 Neo4j 实例的内存配置，您可能需要通过在 neo4j.conf 中设置 dbms.memory.heap.max_size=2G 将堆大小增加到 2-4GB。

我们还可以通过在命令前加上：JAVA_OPTS=-Xmx4G bin/cypher-shell … 来为 cypher-shell 本身提供更多内存。

如果我们没有文件系统访问权限，或者出于其他原因不想写入文件，我们可以流式传输回导出的语句。

以下查询将整个数据库流式传输回 cypherStatements 列
CALL apoc.export.cypher.all(null, {
    batchSize: 5,
    streamStatements: true,
    format: "cypher-shell",
    useOptimizations: {type: "UNWIND_BATCH", unwindBatchSize: 5}
})
YIELD nodes, relationships, properties, cypherStatements
RETURN nodes, relationships, properties, cypherStatements;
表 3. 结果
nodes relationships properties cypherStatements

16

0

34

":begin CREATE CONSTRAINT uniqueConstraint FOR (node:`UNIQUE IMPORT LABEL`) REQUIRE (node.UNIQUE IMPORT ID) IS UNIQUE; :commit :begin UNWIND [{_id:0, properties:{tagline:\"Welcome to the Real World\", title:\"The Matrix\", released:1999}}, {_id:1, properties:{tagline:\"Welcome to the Real World\", title:\"The Matrix\", released:1999}}] AS row CREATE (n:`UNIQUE IMPORT LABEL`{UNIQUE IMPORT ID: row._id}) SET n += row.properties SET n:Movie; UNWIND [{_id:35, properties:{born:1967, name:\"Carrie-Anne Moss\"}}, {_id:36, properties:{born:1961, name:\"Laurence Fishburne\"}}, {_id:37, properties:{born:1965, name:\"Lana Wachowski\"}}] AS row CREATE (n:`UNIQUE IMPORT LABEL`{UNIQUE IMPORT ID: row._id}) SET n += row.properties SET n:Person; :commit :begin UNWIND [{_id:38, properties:{born:1964, name:\"Keanu Reeves\"}}, {_id:39, properties:{born:1952, name:\"Joel Silver\"}}, {_id:40, properties:{born:1960, name:\"Hugo Weaving\"}}, {_id:41, properties:{born:1967, name:\"Lilly Wachowski\"}}, {_id:42, properties:{born:1967, name:\"Carrie-Anne Moss\"}}] AS row CREATE (n:`UNIQUE IMPORT LABEL`{UNIQUE IMPORT ID: row._id}) SET n += row.properties SET n:Person; :commit :begin UNWIND [{_id:43, properties:{born:1965, name:\"Lana Wachowski\"}}, {_id:50, properties:{born:1960, name:\"Hugo Weaving\"}}, {_id:51, properties:{born:1964, name:\"Keanu Reeves\"}}, {_id:57, properties:{born:1967, name:\"Lilly Wachowski\"}}, {_id:58, properties:{born:1961, name:\"Laurence Fishburne\"}}] AS row CREATE (n:`UNIQUE IMPORT LABEL`{UNIQUE IMPORT ID: row._id}) SET n += row.properties SET n:Person; :commit :begin UNWIND [{_id:59, properties:{born:1952, name:\"Joel Silver\"}}] AS row CREATE (n:`UNIQUE IMPORT LABEL`{UNIQUE IMPORT ID: row._id}) SET n += row.properties SET n:Person; :commit "

16

14

42

":begin UNWIND [{start: {_id:35}, end: {_id:0}, properties:{roles:[\"Trinity\"]}}, {start: {_id:36}, end: {_id:0}, properties:{roles:[\"Morpheus\"]}}, {start: {_id:50}, end: {_id:1}, properties:{roles:[\"Agent Smith\"]}}, {start: {_id:40}, end: {_id:0}, properties:{roles:[\"Agent Smith\"]}}, {start: {_id:51}, end: {_id:1}, properties:{roles:[\"Neo\"]}}] AS row MATCH (start:`UNIQUE IMPORT LABEL`{UNIQUE IMPORT ID: row.start._id}) MATCH (end:`UNIQUE IMPORT LABEL`{UNIQUE IMPORT ID: row.end._id}) CREATE (start)-[r:ACTED_IN]→(end) SET r += row.properties; :commit :begin UNWIND [{start: {_id:42}, end: {_id:1}, properties:{roles:[\"Trinity\"]}}, {start: {_id:38}, end: {_id:0}, properties:{roles:[\"Neo\"]}}, {start: {_id:58}, end: {_id:1}, properties:{roles:[\"Morpheus\"]}}] AS row MATCH (start:`UNIQUE IMPORT LABEL`{UNIQUE IMPORT ID: row.start._id}) MATCH (end:`UNIQUE IMPORT LABEL`{UNIQUE IMPORT ID: row.end._id}) CREATE (start)-[r:ACTED_IN]→(end) SET r += row.properties; UNWIND [{start: {_id:59}, end: {_id:1}, properties:{}}, {start: {_id:39}, end: {_id:0}, properties:{}}] AS row MATCH (start:`UNIQUE IMPORT LABEL`{UNIQUE IMPORT ID: row.start._id}) MATCH (end:`UNIQUE IMPORT LABEL`{UNIQUE IMPORT ID: row.end._id}) CREATE (start)-[r:PRODUCED]→(end) SET r += row.properties; :commit :begin UNWIND [{start: {_id:37}, end: {_id:0}, properties:{}}, {start: {_id:57}, end: {_id:0}, properties:{}}, {start: {_id:43}, end: {_id:1}, properties:{}}, {start: {_id:41}, end: {_id:1}, properties:{}}] AS row MATCH (start:`UNIQUE IMPORT LABEL`{UNIQUE IMPORT ID: row.start._id}) MATCH (end:`UNIQUE IMPORT LABEL`{UNIQUE IMPORT ID: row.end._id}) CREATE (start)-[r:DIRECTED]→(end) SET r += row.properties; :commit "

16

14

42

":begin MATCH (n:`UNIQUE IMPORT LABEL`) WITH n LIMIT 5 REMOVE n:`UNIQUE IMPORT LABEL` REMOVE n.UNIQUE IMPORT ID; :commit :begin MATCH (n:`UNIQUE IMPORT LABEL`) WITH n LIMIT 5 REMOVE n:`UNIQUE IMPORT LABEL` REMOVE n.UNIQUE IMPORT ID; :commit :begin MATCH (n:`UNIQUE IMPORT LABEL`) WITH n LIMIT 5 REMOVE n:`UNIQUE IMPORT LABEL` REMOVE n.UNIQUE IMPORT ID; :commit :begin MATCH (n:`UNIQUE IMPORT LABEL`) WITH n LIMIT 5 REMOVE n:`UNIQUE IMPORT LABEL` REMOVE n.UNIQUE IMPORT ID; :commit :begin DROP CONSTRAINT uniqueConstraint; :commit "

然后，我们可以将 cypherStatements 列的内容（不包括双引号）复制/粘贴到 Cypher Shell 会话中，或者复制/粘贴到我们流式传输到 Cypher Shell 会话的本地文件中。

导出为 Neo4j Browser 友好格式

导出到 Cypher 过程支持 format: "plain" 配置，这对于以后使用 Neo4j Browser 导入非常有用。

以下查询将整个数据库导出到 all-plain.cypher 文件中
CALL apoc.export.cypher.all("all-plain.cypher", {
    format: "plain",
    useOptimizations: {type: "UNWIND_BATCH", unwindBatchSize: 20}
})
YIELD file, batches, source, format, nodes, relationships, properties, time, rows, batchSize
RETURN file, batches, source, format, nodes, relationships, properties, time, rows, batchSize;
表 4. 结果
file batches source format nodes relationships properties time rows batchSize

"all-plain.cypher"

1

"database: nodes(8), rels(7)"

"cypher"

8

7

21

9

15

20000

以下显示了 all-plain.cypher 的内容，并增加了额外的行以提高可读性

all-plain.cypher
CREATE CONSTRAINT uniqueConstraint FOR (node:`UNIQUE IMPORT LABEL`) REQUIRE (node.`UNIQUE IMPORT ID`) IS UNIQUE;

UNWIND [{_id:0, properties:{tagline:"Welcome to the Real World", title:"The Matrix", released:1999}}] AS row
CREATE (n:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row._id}) SET n += row.properties SET n:Movie;

UNWIND [{_id:1, properties:{born:1964, name:"Keanu Reeves"}}, {_id:2, properties:{born:1967, name:"Carrie-Anne Moss"}}, {_id:3, properties:{born:1961, name:"Laurence Fishburne"}}, {_id:4, properties:{born:1960, name:"Hugo Weaving"}}, {_id:5, properties:{born:1967, name:"Lilly Wachowski"}}, {_id:6, properties:{born:1965, name:"Lana Wachowski"}}, {_id:7, properties:{born:1952, name:"Joel Silver"}}] AS row
CREATE (n:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row._id}) SET n += row.properties SET n:Person;

UNWIND [{start: {_id:1}, end: {_id:0}, properties:{roles:["Neo"]}}, {start: {_id:2}, end: {_id:0}, properties:{roles:["Trinity"]}}, {start: {_id:3}, end: {_id:0}, properties:{roles:["Morpheus"]}}, {start: {_id:4}, end: {_id:0}, properties:{roles:["Agent Smith"]}}] AS row
MATCH (start:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row.start._id})
MATCH (end:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row.end._id})
CREATE (start)-[r:ACTED_IN]->(end) SET r += row.properties;

UNWIND [{start: {_id:7}, end: {_id:0}, properties:{}}] AS row
MATCH (start:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row.start._id})
MATCH (end:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row.end._id})
CREATE (start)-[r:PRODUCED]->(end) SET r += row.properties;

UNWIND [{start: {_id:5}, end: {_id:0}, properties:{}}, {start: {_id:6}, end: {_id:0}, properties:{}}] AS row
MATCH (start:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row.start._id})
MATCH (end:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row.end._id})
CREATE (start)-[r:DIRECTED]->(end) SET r += row.properties;

MATCH (n:`UNIQUE IMPORT LABEL`)  WITH n LIMIT 20000 REMOVE n:`UNIQUE IMPORT LABEL` REMOVE n.`UNIQUE IMPORT ID`;

DROP CONSTRAINT uniqueConstraint;

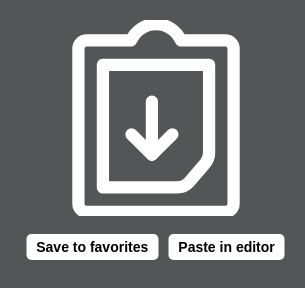

然后，我们可以将 all-plain.cypher 文件拖放到 Neo4j Browser 窗口中。此时应看到以下提示

export cypher plain drag
图 1. 将文件拖放到 Neo4j Browser 时的提示

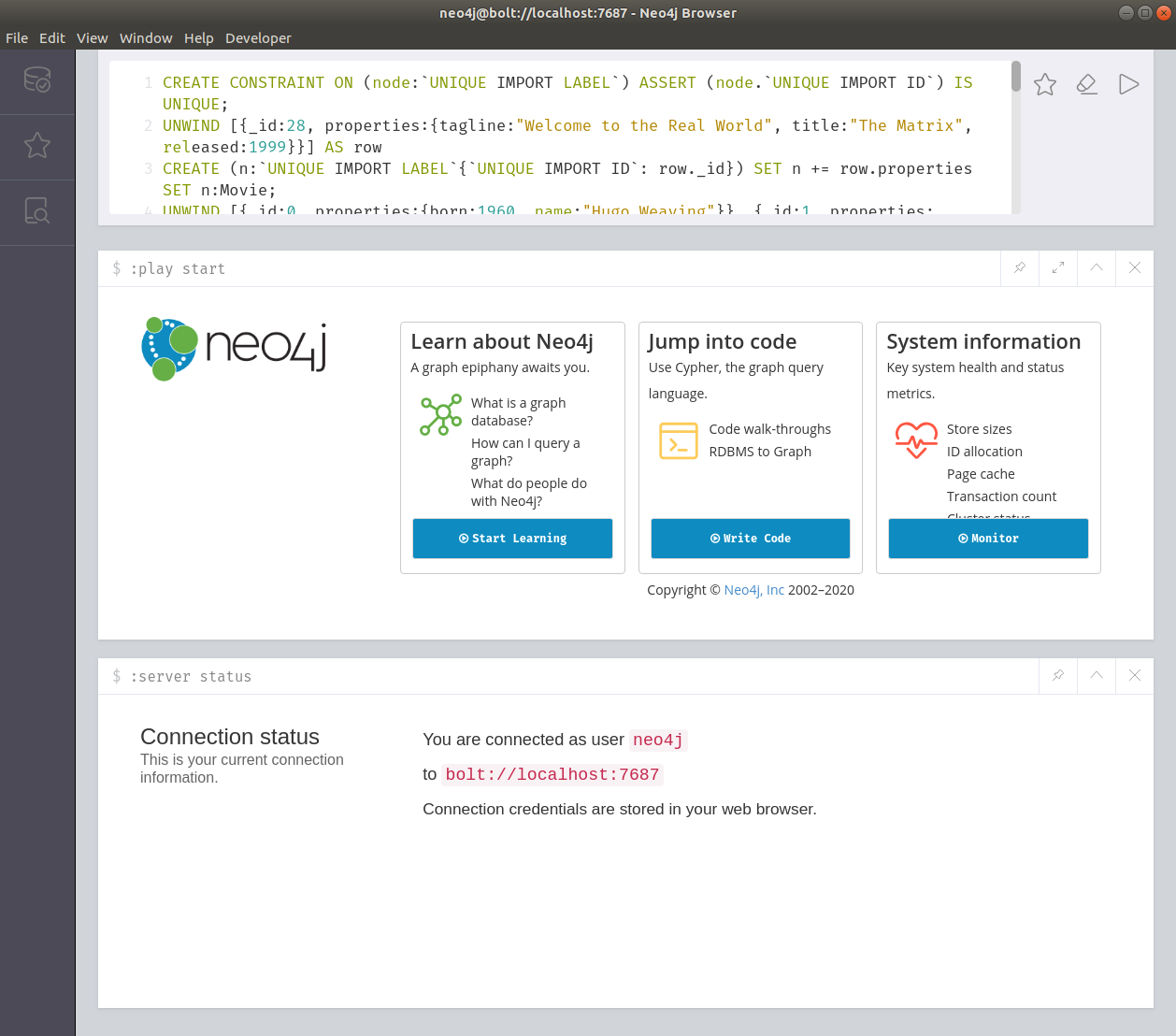

如果单击 Paste in editor，文件内容将出现在查询编辑器中

export cypher plain editor
图 2. 包含 all-plain.cypher 内容的 Neo4j Browser 查询编辑器

然后，我们可以按编辑器中的播放按钮，数据将被导入。

使用不同的 Cypher 更新格式导出

导出到 Cypher 过程使用 CREATE、MATCH 和 MERGE 子句生成 Cypher 语句。格式由 cypherFormat 参数配置。支持以下值

  • create - 仅使用 CREATE 子句（默认）

  • updateAll - 使用 MERGE 而非 CREATE

  • addStructure - 对节点使用 MATCH，对关系使用 MERGE

  • updateStructure - 对节点和关系使用 MERGE 和 MATCH

如果首次导出数据库，应使用默认的 create 格式，但对于后续导出，其他格式可能更合适。

以下使用 create 格式，将 ACTED_IN 关系及相关节点导出到 export-cypher-format-create.cypher 文件中
MATCH (person)-[r:ACTED_IN]->(movie)
WITH collect(DISTINCT person) + collect(DISTINCT  movie) AS importNodes, collect(r) AS importRels
CALL apoc.export.cypher.data(importNodes, importRels,
  "export-cypher-format-create.cypher",
  { format: "plain", cypherFormat: "create" })
YIELD file, batches, source, format, nodes, relationships, properties, time, rows, batchSize
RETURN file, batches, source, format, nodes, relationships, properties, time, rows, batchSize;
表 5. 结果
file batches source format nodes relationships properties time rows batchSize

"export-cypher-format-create.cypher"

1

"data: nodes(5), rels(4)"

"cypher"

5

4

15

2

9

20000
export-cypher-format-create.cypher
CREATE CONSTRAINT uniqueConstraint FOR (node:`UNIQUE IMPORT LABEL`) REQUIRE (node.`UNIQUE IMPORT ID`) IS UNIQUE;
UNWIND [{_id:0, properties:{tagline:"Welcome to the Real World", title:"The Matrix", released:1999}}] AS row
CREATE (n:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row._id}) SET n += row.properties SET n:Movie;

UNWIND [{_id:7, properties:{born:1967, name:"Carrie-Anne Moss"}},
        {_id:80, properties:{born:1960, name:"Hugo Weaving"}},
        {_id:27, properties:{born:1964, name:"Keanu Reeves"}},
        {_id:44, properties:{born:1961, name:"Laurence Fishburne"}}] AS row
CREATE (n:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row._id}) SET n += row.properties SET n:Person;

UNWIND [{start: {_id:27}, end: {_id:0}, properties:{roles:["Neo"]}},
        {start: {_id:7}, end: {_id:0}, properties:{roles:["Trinity"]}},
        {start: {_id:44}, end: {_id:0}, properties:{roles:["Morpheus"]}},
        {start: {_id:80}, end: {_id:0}, properties:{roles:["Agent Smith"]}}] AS row
MATCH (start:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row.start._id})
MATCH (end:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row.end._id})
CREATE (start)-[r:ACTED_IN]->(end) SET r += row.properties;

MATCH (n:`UNIQUE IMPORT LABEL`)  WITH n LIMIT 20000 REMOVE n:`UNIQUE IMPORT LABEL` REMOVE n.`UNIQUE IMPORT ID`;
DROP CONSTRAINT uniqueConstraint;

所有图实体的创建都使用 Cypher CREATE 子句。如果这些实体可能已存在于目标数据库中，我们可以选择使用另一种格式。使用 cypherFormat: "updateAll" 意味着在创建实体时将使用 MERGE 子句而非 CREATE。

以下使用 updateAll 格式，将 ACTED_IN 关系及相关节点导出到 export-cypher-format-create.cypher 文件中
MATCH (person)-[r:ACTED_IN]->(movie)
WITH collect(DISTINCT person) + collect(DISTINCT  movie) AS importNodes, collect(r) AS importRels
CALL apoc.export.cypher.data(importNodes, importRels,
  "export-cypher-format-updateAll.cypher",
  { format: "plain", cypherFormat: "updateAll" })
YIELD file, batches, source, format, nodes, relationships, properties, time, rows, batchSize
RETURN file, batches, source, format, nodes, relationships, properties, time, rows, batchSize;
表 6. 结果
file batches source format nodes relationships properties time rows batchSize

"export-cypher-format-updateAll.cypher"

1

"data: nodes(5), rels(4)"

"cypher"

5

4

15

8

9

20000
export-cypher-format-updateAll.cypher
CREATE CONSTRAINT uniqueConstraint FOR (node:`UNIQUE IMPORT LABEL`) REQUIRE (node.`UNIQUE IMPORT ID`) IS UNIQUE;
UNWIND [{_id:0, properties:{tagline:"Welcome to the Real World", title:"The Matrix", released:1999}}] AS row
MERGE (n:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row._id}) SET n += row.properties SET n:Movie;

UNWIND [{_id:80, properties:{born:1960, name:"Hugo Weaving"}},
        {_id:7, properties:{born:1967, name:"Carrie-Anne Moss"}},
        {_id:44, properties:{born:1961, name:"Laurence Fishburne"}},
        {_id:27, properties:{born:1964, name:"Keanu Reeves"}}] AS row
MERGE (n:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row._id}) SET n += row.properties SET n:Person;

UNWIND [{start: {_id:27}, end: {_id:0}, properties:{roles:["Neo"]}},
        {start: {_id:7}, end: {_id:0}, properties:{roles:["Trinity"]}},
        {start: {_id:44}, end: {_id:0}, properties:{roles:["Morpheus"]}},
        {start: {_id:80}, end: {_id:0}, properties:{roles:["Agent Smith"]}}] AS row
MATCH (start:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row.start._id})
MATCH (end:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row.end._id})
MERGE (start)-[r:ACTED_IN]->(end) SET r += row.properties;

MATCH (n:`UNIQUE IMPORT LABEL`)  WITH n LIMIT 20000 REMOVE n:`UNIQUE IMPORT LABEL` REMOVE n.`UNIQUE IMPORT ID`;
DROP CONSTRAINT uniqueConstraint;

如果目标数据库中已存在节点，我们可以使用 cypherFormat: "addStructure" 为仅关系创建 Cypher CREATE 语句。

以下使用 addStructure 格式，将 ACTED_IN 关系及相关节点导出到 export-cypher-format-addStructure.cypher 文件中
MATCH (person)-[r:ACTED_IN]->(movie)
WITH collect(DISTINCT person) + collect(DISTINCT  movie) AS importNodes, collect(r) AS importRels
CALL apoc.export.cypher.data(importNodes, importRels,
  "export-cypher-format-addStructure.cypher",
  { format: "plain", cypherFormat: "addStructure" })
YIELD file, batches, source, format, nodes, relationships, properties, time, rows, batchSize
RETURN file, batches, source, format, nodes, relationships, properties, time, rows, batchSize;
表 7. 结果
file batches source format nodes relationships properties time rows batchSize

"export-cypher-format-addStructure.cypher"

1

"data: nodes(5), rels(4)"

"cypher"

5

4

15

4

9

20000
export-cypher-format-addStructure.cypher
UNWIND [{_id:0, properties:{tagline:"Welcome to the Real World", title:"The Matrix", released:1999}}] AS row
MERGE (n:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row._id}) ON CREATE SET n += row.properties SET n:Movie;

UNWIND [{_id:7, properties:{born:1967, name:"Carrie-Anne Moss"}},
        {_id:27, properties:{born:1964, name:"Keanu Reeves"}},
        {_id:80, properties:{born:1960, name:"Hugo Weaving"}},
        {_id:44, properties:{born:1961, name:"Laurence Fishburne"}}] AS row
MERGE (n:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row._id}) ON CREATE SET n += row.properties SET n:Person;

UNWIND [{start: {_id:27}, end: {_id:0}, properties:{roles:["Neo"]}},
        {start: {_id:7}, end: {_id:0}, properties:{roles:["Trinity"]}},
        {start: {_id:44}, end: {_id:0}, properties:{roles:["Morpheus"]}},
        {start: {_id:80}, end: {_id:0}, properties:{roles:["Agent Smith"]}}] AS row
MATCH (start:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row.start._id})
MATCH (end:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row.end._id})
CREATE (start)-[r:ACTED_IN]->(end)  SET r += row.properties;

在此示例中，我们使用 MERGE 子句创建节点（如果不存在），并且仅在节点不存在时才创建属性。在此示例中，关系不存在于目标数据库中，需要创建。

如果这些关系确实存在但需要更新属性，我们可以使用 cypherFormat: "updateStructure" 来创建导入脚本。

以下使用 updateStructure 格式，将 ACTED_IN 关系及相关节点导出到 export-cypher-format-updateStructure.cypher 文件中
MATCH (person)-[r:ACTED_IN]->(movie)
WITH collect(DISTINCT person) + collect(DISTINCT  movie) AS importNodes, collect(r) AS importRels
CALL apoc.export.cypher.data(importNodes, importRels,
  "export-cypher-format-updateStructure.cypher",
  { format: "plain", cypherFormat: "updateStructure" })
YIELD file, batches, source, format, nodes, relationships, properties, time, rows, batchSize
RETURN file, batches, source, format, nodes, relationships, properties, time, rows, batchSize;
表 8. 结果
file batches source format nodes relationships properties time rows batchSize

"export-cypher-format-updateStructure.cypher"

1

"data: nodes(5), rels(4)"

"cypher"

0

4

4

2

4

20000
export-cypher-format-updateStructure.cypher
UNWIND [{start: {_id:27}, end: {_id:0}, properties:{roles:["Neo"]}},
        {start: {_id:7}, end: {_id:0}, properties:{roles:["Trinity"]}},
        {start: {_id:44}, end: {_id:0}, properties:{roles:["Morpheus"]}},
        {start: {_id:80}, end: {_id:0}, properties:{roles:["Agent Smith"]}}] AS row
MATCH (start:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row.start._id})
MATCH (end:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row.end._id})
MERGE (start)-[r:ACTED_IN]->(end) SET r += row.properties;

导出到多个文件或列

导出到 Cypher 过程都支持写入多个文件或多个列。我们可以通过传入配置 separateFiles: true 来启用此模式

以下查询将所有 ACTED_IN 关系和相应节点导出到以 actedIn 为前缀的文件中
CALL apoc.export.cypher.query(
  "MATCH ()-[r:ACTED_IN]->()
   RETURN *",
  "actedIn.cypher",
  { format: "cypher-shell", separateFiles: true })
YIELD file, batches, source, format, nodes, relationships, time, rows, batchSize
RETURN file, batches, source, format, nodes, relationships, time, rows, batchSize;
表 9. 结果
file batches source format nodes relationships time rows batchSize

"actedIn.cypher"

1

"statement: nodes(10), rels(8)"

"cypher"

10

8

3

18

20000

这将导致创建以下文件

表 10. 结果
名称 大小（字节） 行数

actedIn.cleanup.cypher

234

6

actedIn.nodes.cypher

893

6

actedIn.relationships.cypher

757

6

actedIn.schema.cypher

109

3

每个文件都包含图的一个特定部分。让我们看看它们的内容

actedIn.cleanup.cypher
:begin
MATCH (n:`UNIQUE IMPORT LABEL`)  WITH n LIMIT 20000 REMOVE n:`UNIQUE IMPORT LABEL` REMOVE n.`UNIQUE IMPORT ID`;
:commit
:begin
DROP CONSTRAINT uniqueConstraint;
:commit
actedIn.nodes.cypher
:begin
UNWIND [{_id:28, properties:{tagline:"Welcome to the Real World", title:"The Matrix", released:1999}}, {_id:37, properties:{tagline:"Welcome to the Real World", title:"The Matrix", released:1999}}] AS row
CREATE (n:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row._id}) SET n += row.properties SET n:Movie;
UNWIND [{_id:31, properties:{born:1961, name:"Laurence Fishburne"}}, {_id:30, properties:{born:1967, name:"Carrie-Anne Moss"}}, {_id:42, properties:{born:1964, name:"Keanu Reeves"}}, {_id:0, properties:{born:1960, name:"Hugo Weaving"}}, {_id:29, properties:{born:1964, name:"Keanu Reeves"}}, {_id:38, properties:{born:1960, name:"Hugo Weaving"}}, {_id:43, properties:{born:1967, name:"Carrie-Anne Moss"}}, {_id:57, properties:{born:1961, name:"Laurence Fishburne"}}] AS row
CREATE (n:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row._id}) SET n += row.properties SET n:Person;
:commit
actedIn.relationships.cypher
:begin
UNWIND [{start: {_id:31}, end: {_id:28}, properties:{roles:["Morpheus"]}}, {start: {_id:42}, end: {_id:37}, properties:{roles:["Neo"]}}, {start: {_id:38}, end: {_id:37}, properties:{roles:["Agent Smith"]}}, {start: {_id:0}, end: {_id:28}, properties:{roles:["Agent Smith"]}}, {start: {_id:29}, end: {_id:28}, properties:{roles:["Neo"]}}, {start: {_id:43}, end: {_id:37}, properties:{roles:["Trinity"]}}, {start: {_id:30}, end: {_id:28}, properties:{roles:["Trinity"]}}, {start: {_id:57}, end: {_id:37}, properties:{roles:["Morpheus"]}}] AS row
MATCH (start:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row.start._id})
MATCH (end:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row.end._id})
CREATE (start)-[r:ACTED_IN]->(end) SET r += row.properties;
:commit
actedIn.schema.cypher
:begin
CREATE CONSTRAINT uniqueConstraint FOR (node:`UNIQUE IMPORT LABEL`) REQUIRE (node.`UNIQUE IMPORT ID`) IS UNIQUE;
:commit

然后，我们可以将这些文件应用到我们的目标 Neo4j 实例，方法是将它们的内容流式传输到 Cypher Shell 中，或者使用 运行 Cypher 片段 中描述的过程。

返回导出语句流时，也可以使用 separateFiles。结果将出现在名为 nodeStatements、relationshipStatements、cleanupStatements 和 schemaStatements 的列中，而不是 cypherStatements。

以下查询返回所有 ACTED_IN 关系和相应节点的流
CALL apoc.export.cypher.query(
  "MATCH ()-[r:ACTED_IN]->()
   RETURN *",
  null,
  { format: "cypher-shell", separateFiles: true })
YIELD nodes, relationships, properties, nodeStatements, relationshipStatements, cleanupStatements, schemaStatements
RETURN nodes, relationships, properties, nodeStatements, relationshipStatements, cleanupStatements, schemaStatements;
表 11. 结果
nodes relationships properties nodeStatements relationshipStatements cleanupStatements schemaStatements

10

8

30

":begin UNWIND [{_id:28, properties:{tagline:\"Welcome to the Real World\", title:\"The Matrix\", released:1999}}, {_id:37, properties:{tagline:\"Welcome to the Real World\", title:\"The Matrix\", released:1999}}] AS row CREATE (n:`UNIQUE IMPORT LABEL`{UNIQUE IMPORT ID: row._id}) SET n += row.properties SET n:Movie; UNWIND [{_id:0, properties:{born:1960, name:\"Hugo Weaving\"}}, {_id:42, properties:{born:1964, name:\"Keanu Reeves\"}}, {_id:31, properties:{born:1961, name:\"Laurence Fishburne\"}}, {_id:29, properties:{born:1964, name:\"Keanu Reeves\"}}, {_id:30, properties:{born:1967, name:\"Carrie-Anne Moss\"}}, {_id:43, properties:{born:1967, name:\"Carrie-Anne Moss\"}}, {_id:38, properties:{born:1960, name:\"Hugo Weaving\"}}, {_id:57, properties:{born:1961, name:\"Laurence Fishburne\"}}] AS row CREATE (n:`UNIQUE IMPORT LABEL`{UNIQUE IMPORT ID: row._id}) SET n += row.properties SET n:Person; :commit "

":begin UNWIND [{start: {_id:31}, end: {_id:28}, properties:{roles:[\"Morpheus\"]}}, {start: {_id:38}, end: {_id:37}, properties:{roles:[\"Agent Smith\"]}}, {start: {_id:0}, end: {_id:28}, properties:{roles:[\"Agent Smith\"]}}, {start: {_id:30}, end: {_id:28}, properties:{roles:[\"Trinity\"]}}, {start: {_id:29}, end: {_id:28}, properties:{roles:[\"Neo\"]}}, {start: {_id:43}, end: {_id:37}, properties:{roles:[\"Trinity\"]}}, {start: {_id:42}, end: {_id:37}, properties:{roles:[\"Neo\"]}}, {start: {_id:57}, end: {_id:37}, properties:{roles:[\"Morpheus\"]}}] AS row MATCH (start:`UNIQUE IMPORT LABEL`{UNIQUE IMPORT ID: row.start._id}) MATCH (end:`UNIQUE IMPORT LABEL`{UNIQUE IMPORT ID: row.end._id}) CREATE (start)-[r:ACTED_IN]→(end) SET r += row.properties; :commit "

":begin MATCH (n:`UNIQUE IMPORT LABEL`) WITH n LIMIT 20000 REMOVE n:`UNIQUE IMPORT LABEL` REMOVE n.UNIQUE IMPORT ID; :commit :begin DROP CONSTRAINT uniqueConstraint; :commit "

":begin CREATE CONSTRAINT uniqueConstraint FOR (node:`UNIQUE IMPORT LABEL`) REQUIRE (node.UNIQUE IMPORT ID) IS UNIQUE; :commit "

然后，我们可以将这些列的每个内容（不包括双引号）复制/粘贴到 Cypher Shell 会话中，或者复制/粘贴到我们流式传输到 Cypher Shell 会话的本地文件中。如果想导出可以粘贴到 Neo4j Browser 查询编辑器中的 Cypher 语句，需要使用配置 format: "plain"，如导出为 Neo4j Browser 友好格式所述。

导出具有相同类型的多个关系

使用以下数据集

create (pers:Person {name: 'MyName'})-[:WORKS_FOR {id: 1}]->(proj:Project {a: 1}),
    (pers)-[:WORKS_FOR {id: 2}]->(proj),
    (pers)-[:WORKS_FOR {id: 2}]->(proj),
    (pers)-[:WORKS_FOR {id: 3}]->(proj),
    (pers)-[:WORKS_FOR {id: 4}]->(proj),
    (pers)-[:WORKS_FOR {id: 5}]->(proj),
    (pers)-[:IS_TEAM_MEMBER_OF {name: 'aaa'}]->(:Team {name: 'one'}),
    (pers)-[:IS_TEAM_MEMBER_OF {name: 'eee'}]->(:Team {name: 'two'})

我们可以看到，在 :Person 和 :Project 节点之间，存在多个相同类型的关系 (WORKS_FOR)。

我们可以看到，在 :Person 和 :Project 节点之间，存在多个相同类型的关系（WORKS_FOR）。

在这些情况下，如果通过 MERGE 子句导出关系，必须使用配置 {multipleRelationshipsWithType: true}，否则将无法区分它们，并且导出的脚本只会创建一个 WORKS_FOR 关系。

CALL apoc.export.cypher.all(null, {stream: true, multipleRelationshipsWithType: true}) YIELD cypherStatements
例如，我们可以执行
cypherStatements

":begin CREATE CONSTRAINT ON (node:`UNIQUE IMPORT LABEL`) ASSERT (node.`UNIQUE IMPORT ID`) IS UNIQUE; :commit CALL db.awaitIndexes(300); :begin UNWIND [{_id:1, properties:{a:1}}] AS row CREATE (n:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row._id}) SET n += row.properties SET n:Project; UNWIND [{_id:2, properties:{name:"one"}}, {_id:3, properties:{name:"two"}}] AS row CREATE (n:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row._id}) SET n += row.properties SET n:Team; UNWIND [{_id:0, properties:{name:"MyName"}}] AS row CREATE (n:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row._id}) SET n += row.properties SET n:Person; :commit :begin UNWIND [{start: {_id:0}, end: {_id:2}, properties:{name:"aaa"}}, {start: {_id:0}, end: {_id:3}, properties:{name:"eee"}}] AS row MATCH (start:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row.start._id}) MATCH (end:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row.end._id}) CREATE (start)-[r:IS_TEAM_MEMBER_OF]→(end) SET r += row.properties; UNWIND [{start: {_id:0}, id: 0, end: {_id:1}, properties:{id:1}}, {start: {_id:0}, id: 1, end: {_id:1}, properties:{id:2}}, {start: {_id:0}, id: 2, end: {_id:1}, properties:{id:2}}, {start: {_id:0}, id: 3, end: {_id:1}, properties:{id:3}}, {start: {_id:0}, id: 4, end: {_id:1}, properties:{id:4}}, {start: {_id:0}, id: 5, end: {_id:1}, properties:{id:5}}] AS row MATCH (start:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row.start._id}) MATCH (end:`UNIQUE IMPORT LABEL`{`UNIQUE IMPORT ID`: row.end._id}) CREATE (start)-[r:WORKS_FOR{`UNIQUE IMPORT ID REL`:row.id}]→(end) SET r += row.properties; :commit :begin MATCH (n:`UNIQUE IMPORT LABEL`) WITH n LIMIT 20000 REMOVE n:`UNIQUE IMPORT LABEL` REMOVE n.`UNIQUE IMPORT ID`; :commit :begin DROP CONSTRAINT ON (node:`UNIQUE IMPORT LABEL`) ASSERT (node.`UNIQUE IMPORT ID`) IS UNIQUE; :commit "
